TOYAL TecFiller™ TFZ Series (TOYALNITE™) is Toyal's product line of aluminum nitride powders with high thermal-conductivity and dielectric properties.
Grade Type D50 (μm) S.S.A. * (m2/g) O (wt%)
TFZ-N01P Irregular Shape 1.2 2.8 0.9
TFZ-N05P Irregular Shape 5.0 1.0 0.6
TFZ-N10P Irregular Shape 9.0 1.0 0.6
TFZ-N15P Irregular Shape 16.0 0.9 0.3

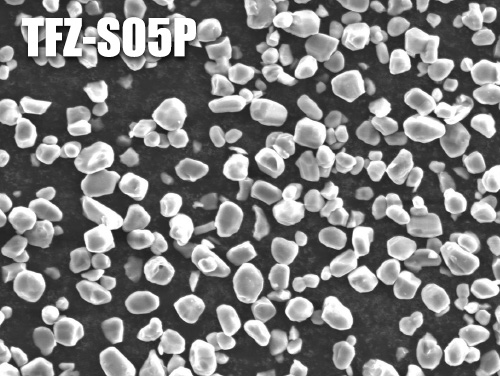

TFZ-S05P Round Edges 5.0 0.5 0.2
TFZ-S20P Round Edges 20.0 0.2 0.1

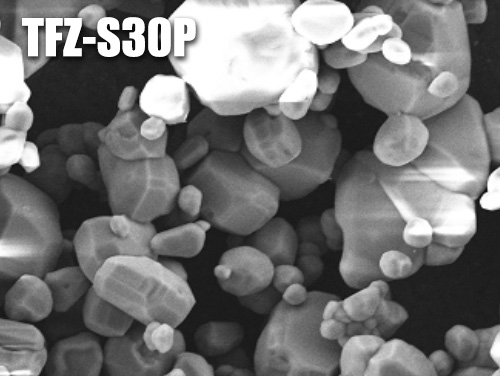

TFZ-S30P Round Edges 30.0 0.2 0.2
TFZ-S60P Round Edges 55.0 0.15 0.1

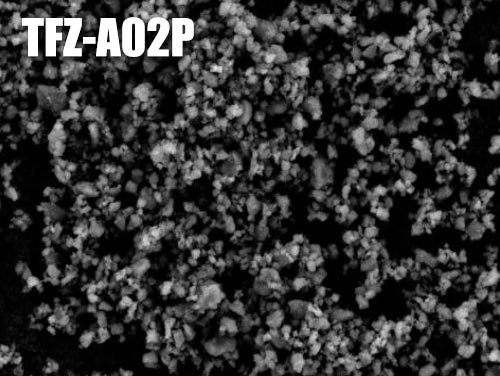

TFZ-A02P Water proof 1.5 3.0 1.5
TFZ-A10P Water proof 10.0 1.2 1.2

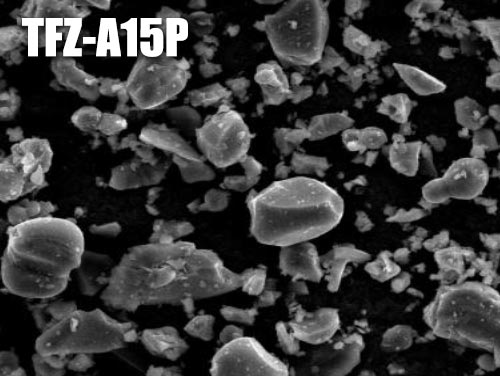

TFZ-A15P Water proof 15.0 0.9 0.8
*S.S.A. : Specific Surface Area Representative data

aluminum nitride filler tfz-a02paluminum nitride filler tfz-a10p aluminum nitride filler tfz-a15p aluminum nitride filler tfz-s05p aluminum nitride filler tfz-s30p
